Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)

Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)
Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)

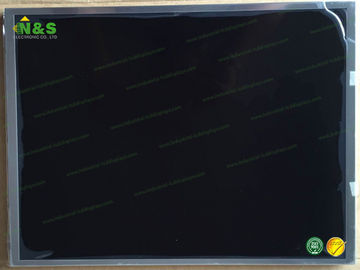

Büyük resim :  Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)

Ürün ayrıntıları:
Menşe yeri: Kore
Marka adı: IDTech
Sertifika: ISO9001
Model numarası: IAQX10M
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Ambalaj bilgileri: Antistatik torba, Kabarcık Çanta, Köpük Kutu ve Karton Kutu.
Teslim süresi: Ödeme onay alındıktan sonra 2-3 iş günü
Ödeme koşulları: T / T, Paypal, Western Union, MoneyGram
Yetenek temini: 100 ADET / GÜN

Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)

Açıklama
Panel Boyutu: 15.0 inç Çözünürlük: 2048 × 1536
Etkin alan: 304,1 × 228,1 mm Kontrast oranı: 400: 1 (Tip)
Ekran Renkleri: 262K (6 bit) Giriş Voltajı: 3,3V (Tip)
Vurgulamak:

industrial touch screen display

,

industrial lcd screen

Normally Black IAQX10M 15.0 inch high resolution 2048×1536 Contrast Ratio 400:1 (Typ.) Input Voltage 3.3V (Typ.)

FAQ
Q1: How do we place an order?
A1: Please kindly send us an email specifying the item No., replacements, quantity, other specifications for the Hard disk to place an order.
Q2: How do we make the payment?
A2: We accept T/T, Western Union, MoneyGram, Paypal.
Q3: What's the delivery time?
A3: The delivery time is normally 1-3 working days after payment.
Q4: How would the goods be shipped?
A4: We ship via DHL, UPS, TNT and others.

IAQX10M Basic Information

Panel Model IAQX10M
Panel Brand IDTech
Descrition a-Si TFT-LCD ,15.0 inch, 2048×1536
Panel Type a-Si TFT-LCD
Operating Temperature 0 ~ 50 °C
Storage Temperature -20 ~ 60 °C



IAQX10M Mechanical Features

Dot Resolution 2048(RGB)×1536 (QXGA)
Pixel Configuration RGB Vertical Stripe
Pixel Density 171 PPI
Aspect Ratio 4:3 (H:V)
Form Factor Flat Rectangle Display
Dot Pitch 0.0495×0.1485 mm (H×V)
Pixel Pitch 0.1485×0.1485 mm (H×V)
Weight 1.06/1.10Kgs (Typ./Max.)
Active Area 304.1×228.1 mm (H×V)
Bezel Area 307.8×231.6 mm (H×V)
Outline Dimension 326×244.5 mm (H×V)
Outline Depth 13.0/13.3 (Typ./Max.) mm
Holes & Brackets Side mounting holes (4-M3) on left, right bezel
Landscape or Portrait Landscape type
Touch Panel Without



IAQX10M Optical Features

Display Mode IPS, Normally Black, Transmissive
Brightness 200 cd/m² (Typ.)
Contrast Ratio 400 : 1 (Typ.) (Transmissive)
Display Color 262K (6-bit)
Response Time 30/30 (Typ.)(Tr/Td)
Viewing Angle 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D)
Viewing Direction Symmetry
White color Chromaticity Wx:0.313; Wy:0.329
Sunlight Readable N



Packaging & Delivery
Packaging Details:
Antistatic bag + Bubble bag + Foam box + Carton box
Delivery Detail:
1-3 working days after payment confirmed

Below are our other LCD panels stock for your easy reference:

Panel Model Brand Size Resolution
HSD055BHW3-D00 HannStar 5.5" 720×1280
H546TAN01.4 AUO 5.5" 720×1280
LSC480AN02 Samsung 48" 1366×768
LQ055T3SX04 SHARP 5.5" 1080×1920
LC550DUK-SGK2 LG Display 55" 1920×1080
LH400WV8-SH01 LG Display 4.0" 480×800
TL055VGXP01 Tianma 5.5" 1080×1920
CLAN089WA02 XN CPT 8.9" 800×1280
LSF650FJ02 Samsung 65" 3840×2160
ST5461B05-2 CSOT 55" 1920×1080
