Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Kontrast oranı: | 450: 1 (Tip) |
|---|---|---|---|
| Panel Boyutu: | 15.0 inç | Çözünürlük: | 1024 × 768 |
| Giriş Voltajı: | 3,3V (Tip) | ||
| Vurgulamak: | industrial lcd screen,industrial lcd panel |
||

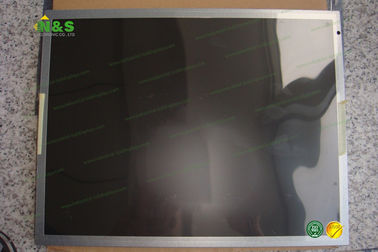

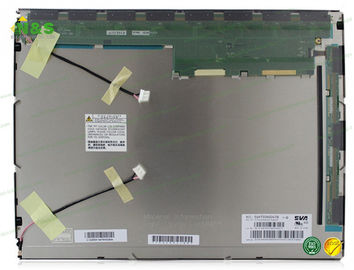

Normally White Transmissive 15.0 inch SVA150XG04TB SVA-NEC for Industrial Application panel Contrast Ratio 450:1 (Typ.)
SVA150XG04TB Basic Information
| Panel Model | SVA150XG04TB |
| Panel Brand | SVA-NEC |
| Descrition | a-Si TFT-LCD ,15.0 inch, 1024×768 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
| Remarks | PSWG Compatible |
SVA150XG04TB Mechanical Features
| Dot Resolution | 1024(RGB)×768 (XGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 85 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.099×0.297 mm (H×V) |
| Pixel Pitch | 0.297×0.297 mm (H×V) |
| Weight | 1.00Kgs (Typ.) |
| Active Area | 304.128×228.096 mm (H×V) |
| Bezel Area | 307.4×231.3 mm (H×V) |
| Outline Dimension | 326.5×253.5 mm (H×V) |
| Outline Depth | 11.2/12.0 (Typ./Max.) mm |
| Holes & Brackets | Side mounting holes (4-M3) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
SVA150XG04TB Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 250 cd/m² (Typ.) |
| Contrast Ratio | 450 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (6-bit + Hi-FRC) |
| Color Gamut | 60% NTSC (CIE1931) |
| Response Time | 3/9 (Typ.)(Tr/Td) |
| Viewing Angle | 60/60/40/60 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.20/1.30 (Typ./Max.)(5 points) |
| Sunlight Readable | N |
