Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 12.1 inç |
|---|---|---|---|
| Çözünürlük: | 800 × 600 | Kontrast oranı: | 500: 1 (Typ.) |
| Frekans: | 60Hz | Giriş Voltajı: | 3,3V (Tip) |
| Vurgulamak: | industrial touch screen display,industrial lcd screen |
||

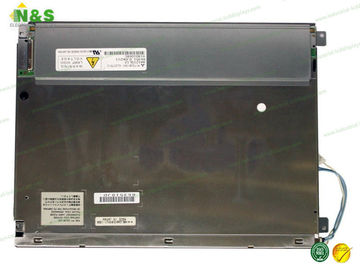

Mitsubishi AA121SL12 12.1 inch 800×600 Normally White Active Area 246×184.5 mm Surface Antiglare, Hard coating (3H)
AA121SL12 Basic Information
| Panel Model | AA121SL12 |
| Panel Brand | Mitsubishi |
| Descrition | a-Si TFT-LCD ,12.1 inch, 800×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
AA121SL12 Mechanical Features
| Dot Resolution | 800(RGB)×600 (SVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 82 PPI |
| Aspect Ratio | 4:3 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.1025×0.3075 mm (H×V) |
| Pixel Pitch | 0.3075×0.3075 mm (H×V) |
| Weight | 750g (Typ.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 246×184.5 mm (H×V) |
| Bezel Area | 249.0×187.5 mm (H×V) |
| Outline Dimension | 280×210 mm (H×V) |
| Outline Depth | 12.0 (Typ.) mm |
| Holes & Brackets | Face mounting holes (4-Φ3.5) on left bezel, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
AA121SL12 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Response Time | 10/30 (Typ.)(Tr/Td) |
| Viewing Angle | 65/65/75/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.43 (Max.)(5 points) |
| Sunlight Readable | N |
Our Advantage :
>>Quality Guarantee:
Our LCD Panels are 100% original and brand new!
Warranty : 12 months
You can enjoy the real panels directly from the LCD panel brand distributor.
>>Packing Guarantee:
All the products are in original package from original factory directly, and all the LCD panel packages with labels and serial number!
>>Delivery Guarantee:
We have international logistic center in HK, so we can arrange fastest and most convenient delivery for you!
>>After-Sale service
We have many years good experience on display solution.
Any question, we will reply you within 12 hours.
AA121SL12 Electronics Feature
| Vertical Frequency | 60Hz |
| Reverse Scan | Yes (180°) |
AA121SL12 Backlight System
| Lamp Position | Edge light type |
| Lamp Type | CCFL |
| Lamp Amount | 2 pcs |
| Lamp Shape | Straight |
| Lamp Life Time | 50K(Min.) (Hours) |
| Lamp Replaceable | Replaceable |
| Lamp Voltage | 540V (Typ.) |
| Lamp Current | 3.0/6.0/7.0mA (Min./Typ./Max.) |
| Lamp Operating Frequency | 30/60KHz (Min./Max.) |
| Lamp Startup Voltage | 1000/1200/1290V (Min.)(Ta=+25/0/-20℃) |
| Interface Type | Connector |
| Lamp Driver Board | No |
Warranty:
1. All panels’ grade is promised strictly same as original factory’s standard.
2. All brand-new Panels’ electronic functions are guarranted during warranty period of 1 year beginning with the invoice date.
3. We own 6-Year experience in the Medical LCD display, Aerospace LCD screen, Gaming LCD replacements, Military LCD screen, Kiosk LCD Display, Transportation LCD, industrial LCD panel and more.
4. ISO 9001 guarantee.
Here comes our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| N101JSA-P11 | Innolux | 10.1" | 1200×1920 |
| LC420DUJ-FFE2 | LG Display | 42" | 1920×1080 |
| TV070WSU-N10 | BOE | 7.0" | 1024×600 |
| HSD040I3N1-B00-0299 | HannStar | 4.0" | 320×240 |
| TM045YYHP08 | Tianma | 4.5" | 480×854 |
| C055SWF5-0 | IVO | 5.5" | 1080×1920 |
| C050SWA6-3 | IVO | 5.0" | 720×1280 |
| C050SWYG-0 | IVO | 5.0" | 480×854 |
| C050SWYD-2 | IVO | 5.0" | 480×854 |
| CLAF050WH41 | CPT | 5.0" | 720×1280 |
| LH470WX3-SH05 | LG Display | 4.7" | 720×1280 |
