Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 10.1 inç |
|---|---|---|---|
| Çözünürlük: | 1024 × 600 | Giriş Voltajı: | 3,3V (Tip) |
| Etkin alan: | 222,72 × 125,28 mm | Anahat: | 235 × 143 × 5.2 mm |
| Vurgulamak: | industrial touch screen display,industrial lcd panel |
||

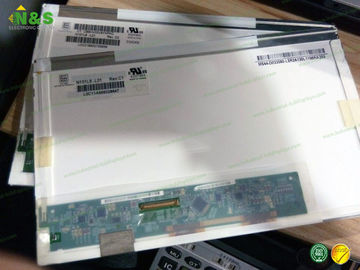

Normally White N101L6-L01 TFT LCD Module CMO 10.1 inch Surface Antiglare (Haze 25%), Hard coating (3H)
N101L6-L01 Basic Information
| Panel Model | N101L6-L01 |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N101L6-L01 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 180/190g (Typ./Max.) |
| Surface | Antiglare (Haze 25%), Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.34×128.1 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 4.9/5.2 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
N101L6-L01 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Response Time | 3/7 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/20/45 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25 (Max.)(5 points) |
| Sunlight Readable | N |
