Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 10.1 inç |
|---|---|---|---|
| Çözünürlük: | 1024 × 600 | Anahat: | 235 × 143 × 5.2 mm |
| Kontrast oranı: | 500: 1 (Typ.) | Giriş Voltajı: | 3,3V (Tip) |
| Vurgulamak: | industrial touch screen display,industrial lcd panel |
||

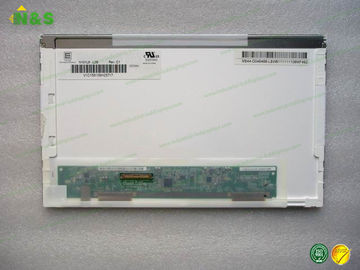

Normally White 10.1 inch N101L6-L0B TFT LCD Module CMO resolution 1024×600 Outline 235×143×5.2 mm new and original
N101L6-L0B Basic Information
| Panel Model | N101L6-L0B |
| Panel Brand | CMO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
N101L6-L0B Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 180/190g (Typ./Max.) |
| Surface | Glare (Haze 0%), Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 226.34×128.1 mm (H×V) |
| Outline Dimension | 235×143 mm (H×V) |
| Outline Depth | 4.9/5.2 (Typ./Max.) mm |
| Shape Style | Wedge (PCBA Bent, Depth ≥5.2mm) |
| Holes & Brackets | Side mounting holes (4-M2) on left, right bezel |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
