Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 10.1 inç |
|---|---|---|---|
| Çözünürlük: | 1024 × 600 | Anahat: | 245 × 146,5 × 3,4 mm |
| Yüzey: | Antiglare, Sert kaplama (3H) | Kontrast oranı: | 500: 1 (Typ.) |
| Vurgulamak: | industrial touch screen display,industrial lcd screen |
||

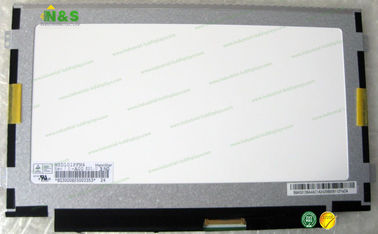

HSD101PFW4-A00 10.1 inch HannStar Active Area 222.72×125.28 mm resolution 1024×600 new and original in stock
HSD101PFW4-A00 Basic Information
| Panel Model | HSD101PFW4-A00 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1024×600 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HSD101PFW4-A00 Mechanical Features
| Dot Resolution | 1024(RGB)×600 (WSVGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 117 PPI |
| Aspect Ratio | 16:9 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0725×0.2088 mm (H×V) |
| Pixel Pitch | 0.2175×0.2088 mm (H×V) |
| Weight | 136/146g (Typ./Max.) |
| Surface | Antiglare, Hard coating (3H) |
| Active Area | 222.72×125.28 mm (H×V) |
| Bezel Area | 225.72×128.28 mm (H×V) |
| Outline Dimension | 245×146.5 mm (H×V) |
| Outline Depth | 3.1/3.4 (Typ./Max.) mm |
| Holes & Brackets | Face mounting holes (8 pcs) on left, right slugs |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD101PFW4-A00 Optical Features
| Display Mode | TN, Normally White, Transmissive |
| Brightness | 200 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 4/12 (Typ.)(Tr/Td) |
| Viewing Angle | 45/45/15/35 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | 6 o'clock |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.50 (Max.)(5/13 points) |
| Sunlight Readable | N |
FAQ
1. Q: Where can I get the price?
A:We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we'll regard your inquiry priority.
2. Q: How can I get a sample to check your quality?
A: After price confirmation, you can require for samples to check our quality.
3. Q: What about the lead time for mass production?
A: It depends on your order quantity and the season you place the order.
4. Q: What are your terms of payment?
A: We accept T/T, Western Union, MoneyGram, PayPal.
To get the latest prices, pls feel free to contact us.
1. Samples charge: According to the model. Pls contact us to get details.
2. Samples time:1 day forstock models
Packing: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
Shipping: Delivery will be arranged in 1-3 working days once received payment, and will use third parties delivery services or delivered as you request.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| ED060SC4 | E Ink | 6.0" | 800×600 |
| ED050SC3 | E Ink | 5.0" | 800×600 |
| ED019OC1 | E Ink | 1.9" | 128×112 |
| LB050S01-RD01 | LG Display | 5.0" | 800×600 |
| OEL1M2022-W-E | No Brand | 1.1" | 128×128 |
| VG-9616TSWCG02 | WiseChip | 0.69" | 96×16 |
| UG-2832KLBEG04 | WiseChip | 0.91" | 128×32 |
| UG-7232TMWAG02 | WiseChip | 0.5" | 72×32 |
