Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 10.1 inç |
|---|---|---|---|
| Çözünürlük: | File not found. | Kontrast oranı: | 800: 1 (Tip) |
| Etkin alan: | 216,96 × 135,6 mm | Anahat: | 227.42 × 147.69 × 4.25 mm |
| Vurgulamak: | industrial touch screen display,industrial lcd screen |
||

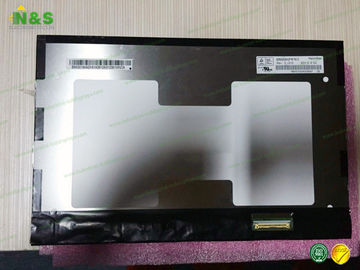

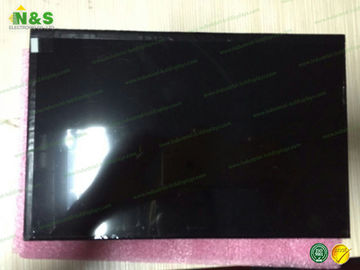

Resolution 1280×800 10.1 inch HSD101PWW1-G10 TFT LCD Module HannStar Outline 227.42×147.69×4.25 mm new and original
FAQ
Q1: What's the quality of your Hard Disk?
A: Various brands for hard disk etc. We are available to meet your different requirements.
Q2: What is your return and refund policy?
A: We provide you excellent after-sales services, and promise you 12-month warranty after shipping to assure you a stable performance.
Q4: How long is the lead time?
A: The lead time is about 2-3 working days after receipt of payment.
Q5: Do you accept sample order?
A:Yes, sample order is welcome.
Q6: How can I get the quotation?
A: Please enquire via Skype, Email, Whatsapp or telephone. You will get reply within 24 hours.
Guarantee:
(1) All items will be strictly tested and shipped with safe & professional package.
(2) We have 2~6months warranty for every LCD screen panels, depend on the different LCD panel models.
(3) We will do our best to solve any possible problem for your after sale. Please contact to us.
Below are our other LCD panels stock for your easy reference:
| Panel Model | Brand | Size | Resolution |
| CLAF047LC41 TXX | CPT | 4.7" | 540×960 |
| CLAG040LQ11 | CPT | 4.0" | 480×800 |
| C047SWA1-0 | IVO | 4.7" | 720×1280 |
| LC420DUJ-SGE3 | LG Display | 42" | 1920×1080 |
| HSD050BMW2-D00 | HannStar | 5.0" | 540×960 |
| C101NWWB-0 | IVO | 10.1" | 1280×800 |
| HSD035F8W2-A00 | HannStar | 3.5" | 480×854 |
| CLAG045LJ11 | CPT | 4.5" | 480×854 |
| CLAD027GJ01 00XD | CPT | 2.7" | 320×240 |
We also have other industrial LCD panels, pls contact to us for the further information: salespm@nselectronic.com.hk
HSD101PWW1-G10 Basic Information
| Panel Model | HSD101PWW1-G10 |
| Panel Brand | HannStar |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | 0 ~ 50 °C |
| Storage Temperature | -20 ~ 60 °C |
HSD101PWW1-G10 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 135g (Max.) |
| Surface | Hard coating |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 227.42×147.69 mm (H×V) |
| Outline Depth | 2.15/4.25 (Typ./Max.) mm |
| Holes & Brackets | Without |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
HSD101PWW1-G10 Optical Features
| Display Mode | HS-IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 262K (6-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.25/1.50 (Max.)(5/13 points) |
| Sunlight Readable | N |
