Ürün ayrıntıları:
|
| Panel tipi: | a-Si TFT-LCD | Panel Boyutu: | 10.1 inç |
|---|---|---|---|
| Çözünürlük: | 1280 × 800 | Yüzey: | Parlama önleyici |
| Etkin alan: | 216,96 × 135,6 mm | Anahat: | 229.46 × 149.1 × 4.56 mm |
| Vurgulamak: | industrial touch screen display,industrial lcd screen |
||

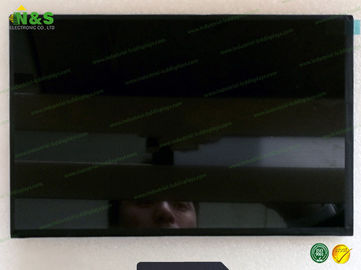

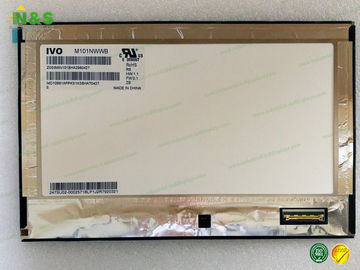

Normally Black M101NWWB R6 IVO LCD Display 10.1 inch 1280×800 Outline 229.46×149.1×4.56 mm Frequency 60Hz
Why do you choose us?
• Quick response to clients' enquiries within 24hrs.
• More than 6-year experience in LCD screen field and professional team communication team.
•Value quality and long-term cooperation to reach win-win relationship.
M101NWWB R6 Basic Information
| Panel Model | M101NWWB R6 |
| Panel Brand | IVO |
| Descrition | a-Si TFT-LCD ,10.1 inch, 1280×800 |
| Panel Type | a-Si TFT-LCD |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
M101NWWB R6 Mechanical Features
| Dot Resolution | 1280(RGB)×800 (WXGA) |
| Pixel Configuration | RGB Vertical Stripe |
| Pixel Density | 149 PPI |
| Aspect Ratio | 16:10 (H:V) |
| Form Factor | Flat Rectangle Display |
| Dot Pitch | 0.0565×0.1695 mm (H×V) |
| Pixel Pitch | 0.1695×0.1695 mm (H×V) |
| Weight | 160g (Max.) |
| Surface | Antiglare |
| Active Area | 216.96×135.6 mm (H×V) |
| Outline Dimension | 229.46×149.1 mm (H×V) |
| Outline Depth | 2.5/4.56 (Typ./Max.) mm |
| Landscape or Portrait | Landscape type |
| Touch Panel | Without |
M101NWWB R6 Optical Features
| Display Mode | IPS, Normally Black, Transmissive |
| Brightness | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (Transmissive) |
| Display Color | 16.7M (8-bit) |
| Color Gamut | 45% NTSC (CIE1931) |
| Response Time | 25 (Typ.)(Tr+Td) |
| Viewing Angle | 85/85/85/85 (Typ.)(CR≥10) (L/R/U/D) |
| Viewing Direction | Symmetry |
| White color Chromaticity | Wx:0.313; Wy:0.329 |
| White Variation | 1.33/1.43 (Typ./Max.)(13 points) |
| Sunlight Readable | N |
N&S Delivery Details:
1) We are shipping this item to worldwide.
2) Our LCD panel orders processed within 1-3 working days of payment verification.
3) If you have not received the item on the Delivery Time. Please contact us. We will track the shipment and get back to your as soon as possible with a reply. Our goal is customer satisfaction.
5) We use the professional & safe package for our LCD screen replacements for you: Antistatic bag, Bubble Bag, Foam Box and Carton Box.
6) We will keep you updated for the Tracking NO. after we ship out the parcel to you.
7) Feel free to contact to us if there is any problems during the shipment process.
Here comes our other LCD panels stock for your easy reference:
| P190MWW4 R2 | IVO | 19.0" | 1440×900 |
| P190MWW4 R1 | IVO | 19.0" | 1440×900 |
| C039SWP4 | IVO | 4.0" | 480×800 |
| C028SN21-0 | IVO | 2.8" | 240×320 |
| P270MWN1 R0 | IVO | 27.0" | 1920×1080 |
| C050SWY2 | IVO | 4.9" | 480×854 |
| C035SWN1-1 | IVO | 3.5" | 320×480 |
| C035SWN1-0 | IVO | 3.5" | 320×480 |
| C101NWTG | IVO | 10.1" | 1024×600 |
| C046SWN1-2 | IVO | 4.6" | 480×854 |
| C062SWP1 R1 | IVO | 6.2" | 800×480 |
